THETA THM982 Brushless HV Servo - Mini / 35mm tail servo - 450-600 size

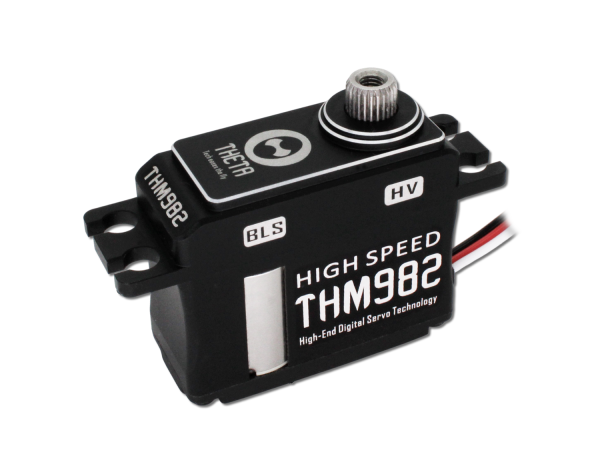

THETA THM982 Brushless HV Servo

Brushless HV servo in the 35 mm size.
The application range of the servo is versatile from helicopter tail servo in 450-600 midi size, in function models, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC cars.

THETA THM982 Brushless HV Servo

Specifications
---------------------------------------
Motor: Brushless
Operating Voltage: 5V bis 8.4V

with max. 2.3A current consumption:
- Speed at 5V: 0.080 sec/60°
- Speed at 6V: 0.070 sec/60°
- Speed at 7.4V: 0.060 sec/60°
- Speed at 8.4V: 0.050 sec/60°

- Torque at 5V: 6 kg/cm
- Torque at 6V: 7 kg/cm
- Torque at 7.4V: 8 kg/cm
- Torque at 8.4V: 9 kg/cm

Weight: 42g

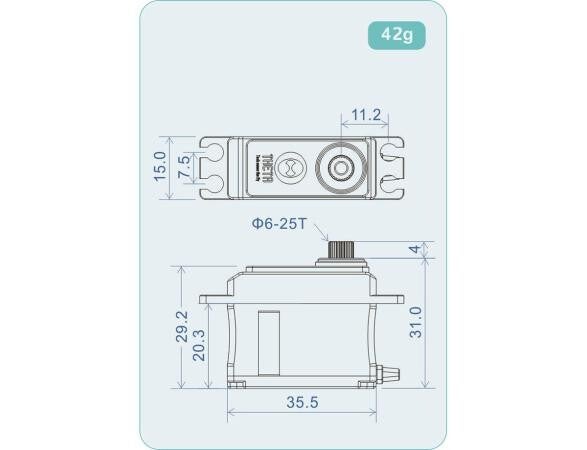

Dimensions (mm): 35 × 15 × 31mm
Neutral pulse (factory-made): 760µs
Working Frequency: 50–1000Hz
Output toothing: 25T Ø5.9mm (Nexspor, Futaba, Align, BK, Savöx usw.)

Accessories:
1x Servo THM982
4x Servohorn
1x Screw M3
4x Rubber damper
4x Brass grommet
4x Tapping screw for servo
1x Capacitor
