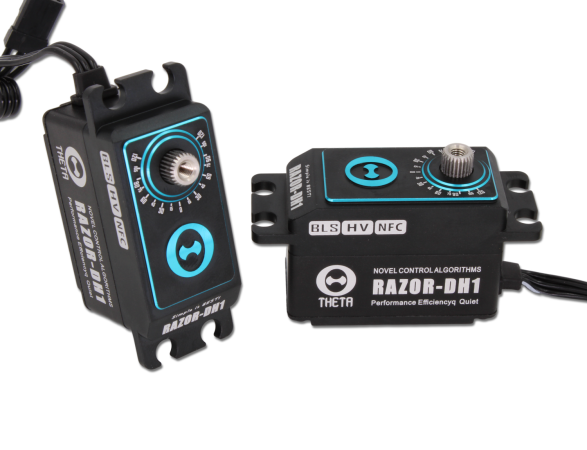

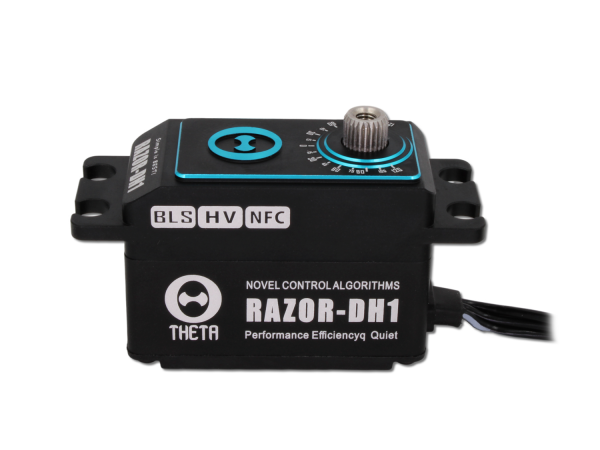

THETA RAZOR-DH1 Standard Low-Profile Brushless HV Servo with NFC swashplate 550/800 heli size

THETA RAZOR-DH1 Low-Profile Brushless HV Servo with NFC

NFC programmable brushless HV servo in the 40 mm low-profile size.
The application range of the servo is versatile from helicopter swashplate servo from the 550 up to the 800 size, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC cars.
Due to the SANWA SSR compatibility, the advantages of Sanwa Super Response transmission can be used in the RC car sector.

THETA Brushless HV Servo with NFC

THETA Brushless HV Servo with NFC

Specifications
---------------------------------------
NFC programmable via Android mobile phone app

Motor: Brushless
Operating Voltage: 5V bis 8.4V

with max. 3A current consumption:
- Speed at 5V: 0.108 sec/60°
- Speed at 6V: 0.090 sec/60°
- Speed at 7.4V: 0.080 sec/60°
- Speed at 8.4V: 0.070 sec/60°

- Torque at 5V: 24 kg/cm
- Torque at 6V: 26 kg/cm
- Torque at 7.4V: 28 kg/cm
- Torque at 8.4V: 30 kg/cm

with max. 5A current consumption:
- Speed at 5V: 0.092 sec/60°
- Speed at 6V: 0.081 sec/60°
- Speed at 7.4V: 0.072 sec/60°
- Speed at 8.4V: 0.063 sec/60°

- Torque at 5V: 30 kg/cm
- Torque at 6V: 34 kg/cm
- Torque at 7.4V: 37 kg/cm
- Torque at 8.4V: 40 kg/cm

Weight: 60g
Dimensions (mm): 41×20.5×29.5mm
Neutral pulse (factory-made): 1520µs
Neutral pulse (optional per App): 760µs
Working Frequency: 50–400Hz
Output toothing: 25T Ø5.9mm (Nexspor, Futaba, Align, BK, Savöx usw.)

Accessories:
1x Servo RAZOR-DH1
3x Servo horn
1x Screw M3
4x Rubber damper
4x Brass grommet
4x Tapping screw for servo
