Motor Specifications

Stator Diameter: 42 mm
Stator Thickness: 25 mm
No. of Stator Arms: 12
Magnet Poles: 10
Motor Wind: 3+3 Turn Delta
Motor Wire: 2-Strand 1.1 mm
Motor Kv: 1050KV RPM/Volt
No-Load Current (IO/10v): 3.5 Amps
Motor Resistance (RM): 0.005 Ohms
Max Continuous Current: 130 Amp
Max Continuous Power: 2800 Watt
Weight: 360 Grams

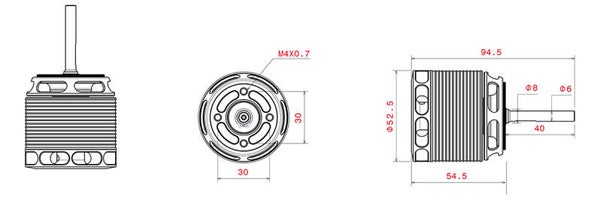

Outside Diameter: 52.5 mm
Shaft Diameter: 6 mm
Body Length: 54.5 mm
Overall Shaft Length: 94.5 mm
Max Lipo Cell: 6s
Peak Continuous Current: 180 Amps (5 seconds)
Peak Continuous Power: 4320 Watts (5 seconds)
Motor Timing: 5deg~12deg
Drive Frequency: 8kHz~32khz
