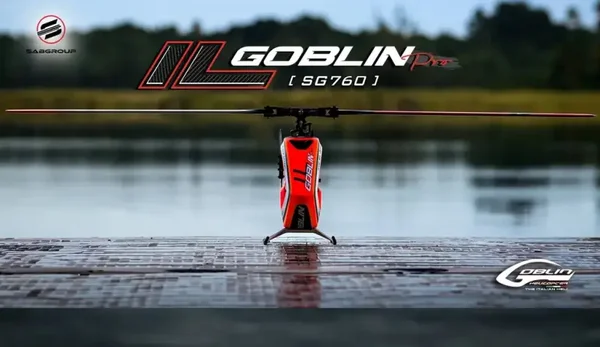

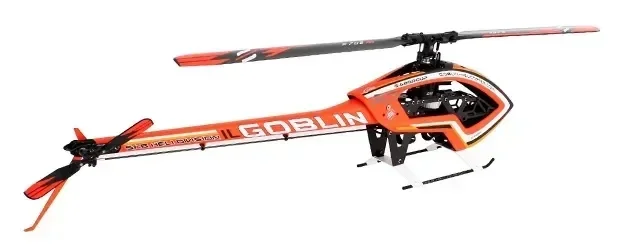

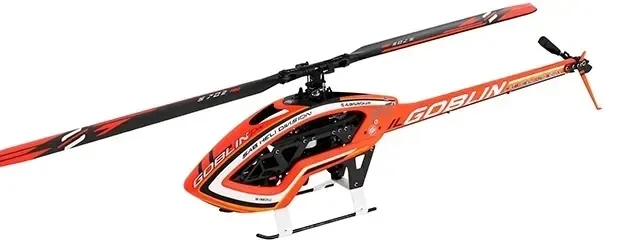

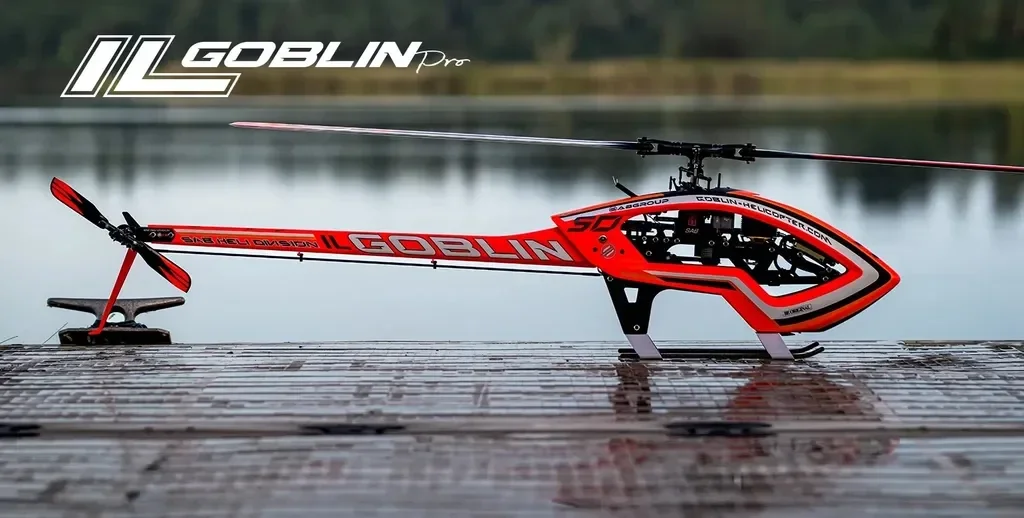

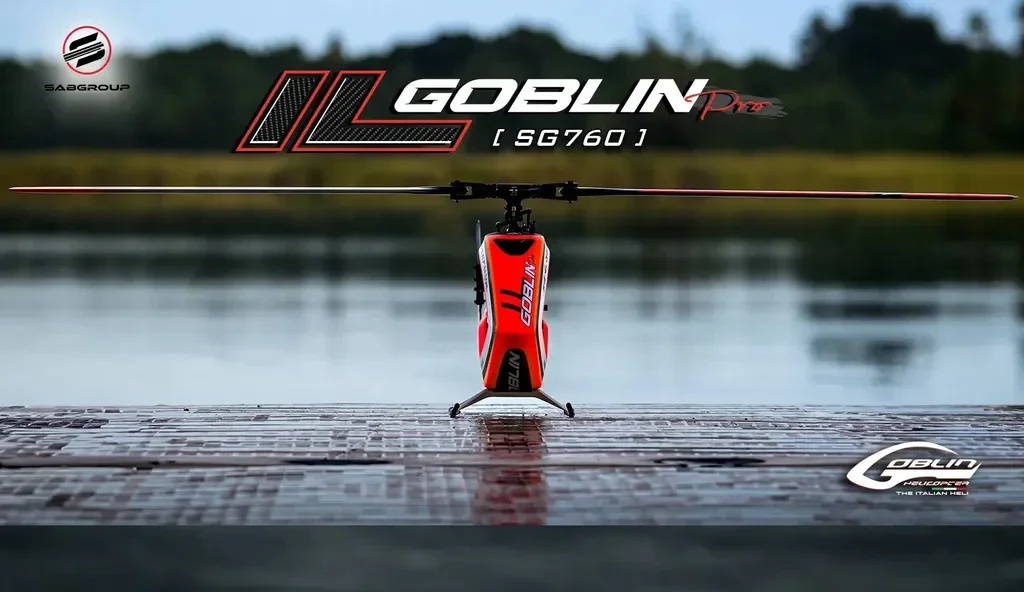

SAB ilGoblin PRO 700 size Helicopter kit #SG760 with main and tail blades

The new ilGoblin PRO represents a significant technological advancement in RC helicopters, with a complete redesign compared to previous models. Here are the main innovations:

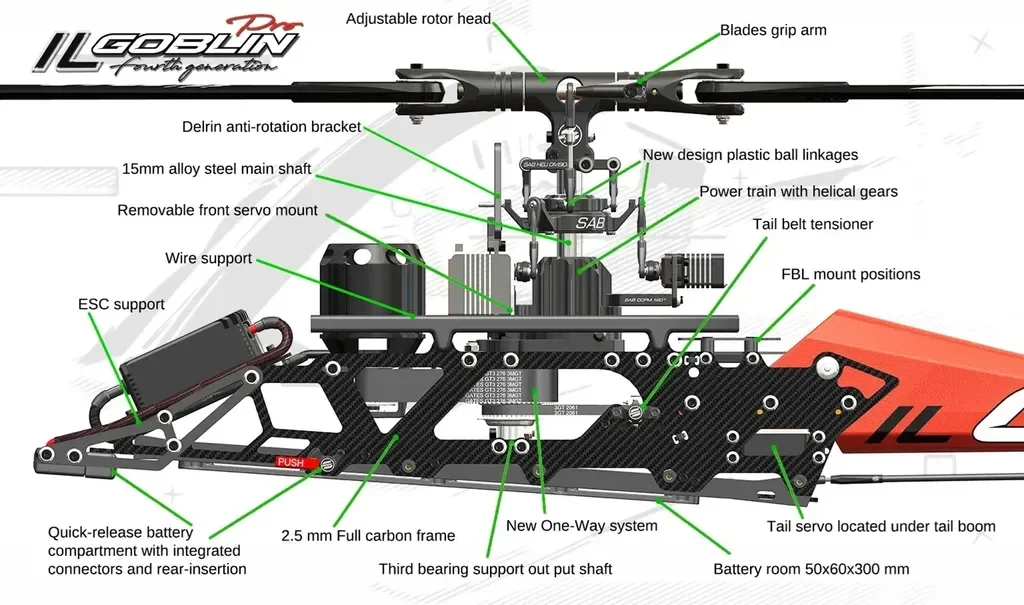

Main transmission:

• The main transmission is based on the renowned GOBLIN gearbox, now further improved.
• The main shaft diameter has been increased to 15 mm for increased rigidity.
• New helical gears for increased durability and strength.
• New One-Way system, redesigned for optimal performance.
• A fast disassembly servo mount that allows for easier and faster maintenance on the servos.
• The new gearbox is lighter than previous models.

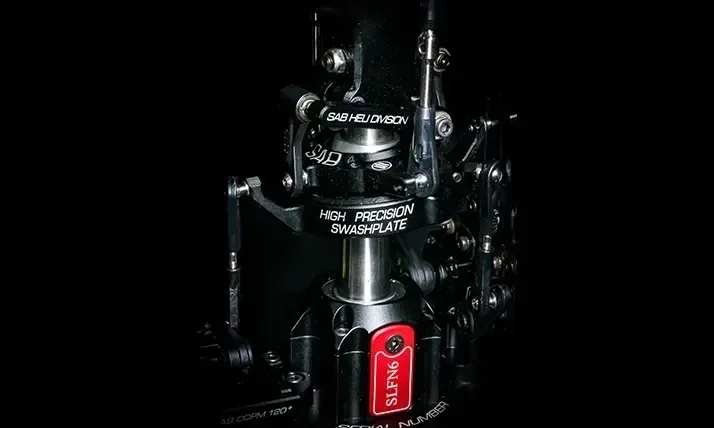

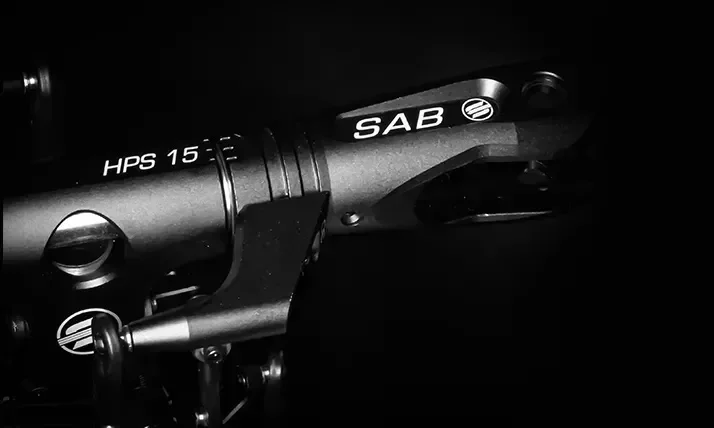

Rotor head:

• New design that features new blade grip arms with an improved locking system.
• Self-Centering Titanium washers that ensure automatic centering for greater precision.
• Possibility of adding a pivot shaft for the spindle allowing customization of rigidity and maximum movement.

Tail rotor:

• 8 mm Tail shaft with 8x16x5 bearings that contribute to increase rigidity and a smoother tail.
• The shaft and the Hub are made from a single part in order to have maximum precision.
• The tail pulley will be available in 3 different sizes to adjust the tail ratio according to personal preferences.

Tail boom:

• Made with high-pressure molding technology and its weight is only 180 gr.
• Includes a belt tensioning system with an indicator for optimal control

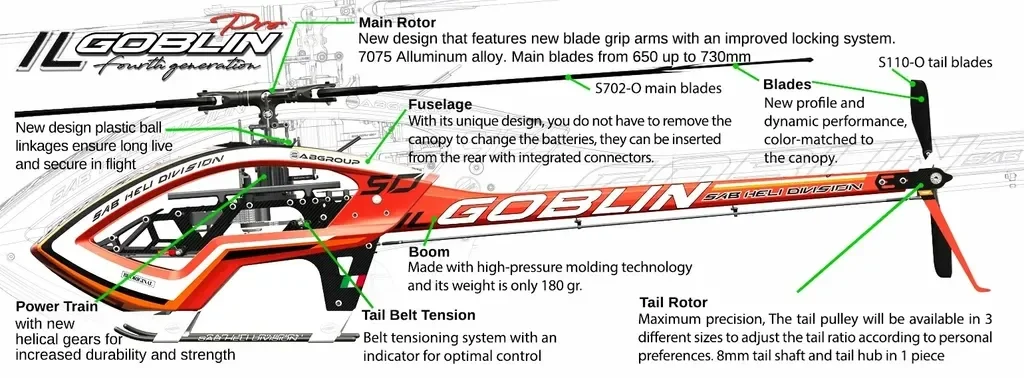

Canopy and blades:

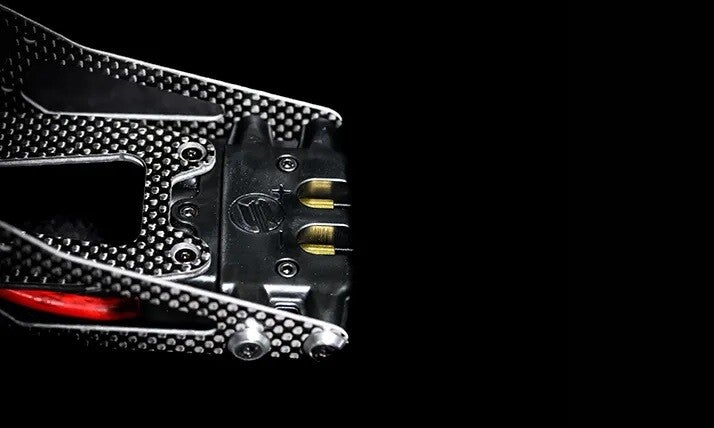

• With its unique design, you do not have to remove the canopy to change the batteries, they can be inserted from the rear with integrated connectors.
• The blades in the kit are the new S702, with new profile and dynamic performance, color-matched to the canopy.
• The tail blades are S110 with a new design for improved performance.

IlGoblin PRO [SG760] Specifications:

• AIRFRAME weight: 2178 gr (no blades, no battery, no electronics).
• Main rotor diameter: 1576 mm (with 700 mm blades).
• Main blade length: 650 to 730mm.
• Tail rotor diameter: 292 mm (with 110 mm tail blades).
• Tail blade length: 105 to 115 mm.
• Cyclic Servos: Standard size 40mm.
• Tail Servo: Standard size 40mm.
• Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1).
• Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)
• Main shaft 15 mm, Tail shaft 8 mm
• Molded carbon tail boom
• Motor 12S, 480/560 KV
• Battery room: 50x60x300 mm
• 21T motor pulley (other pulley sizes available).
• 2 battery trays with integrated connectors.
• S702 Orange (700 mm main blades)
• S110 Orange (110 mm tail blades)

The Kit includes:

• 21T motor pulley (other pulley sizes available).
• 2 battery trays with integrated connectors.
• S702 Orange (700 mm main blades)
• S110 Orange (110 mm tail blades)
