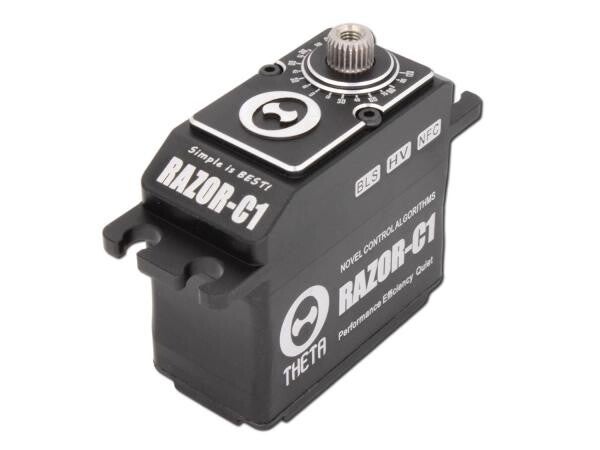

THETA RAZOR-C1B NFC HV Standard Brushless Servo - swashplate 550/800 heli size (black color)

Soon
THETA RAZOR-C1B NFC HV Standard Brushless Servo - swashplate 550/800 heli size (black color)
€134.90
Item number: THETA-RAZOR-C1-B

THETA RAZOR-C1 Brushless HV Servo with NFC

NFC programmable brushless HV servo in the 40 mm standard size.
The application range of the servo is versatile from helicopter swashplate servo from the 550 size up to the 800 size, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC Cars.
Due to the SANWA SSR compatibility, the advantages of Sanwa Super Response transmission can be used in the RC Car range.

THETA RAZOR-C1 Brushless HV Servo with NFC

Specifications
---------------------------------------
NFC programmable via Android mobile phone app

Motor: Brushless
Operating Voltage: 5V bis 8.4V

with max. 2.6A current consumption:
- Speed at 5V: 0.108 sec/60°
- Speed at 6V: 0.084 sec/60°
- Speed at 7.4V: 0.071 sec/60°
- Speed at 8.4V: 0.060 sec/60°

- Torque at 5V: 23 kg/cm
- Torque at 6V: 27 kg/cm
- Torque at 7.4V: 34 kg/cm
- Torque at 8.4V: 36 kg/cm

with max. 5A current consumption:
- Speed at 5V: 0.102 sec/60°
- Speed at 6V: 0.079 sec/60°
- Speed at 7.4V: 0.067 sec/60°
- Speed at 8.4V: 0.056 sec/60°

- Torque at 5V: 32 kg/cm
- Torque at 6V: 37 kg/cm
- Torque at 7.4V: 44 kg/cm
- Torque at 8.4V: 48 kg/cm

Weight: 73g
Dimensions (mm): 40x20x38mm
Neutral pulse (factory-made): 1520µs
Neutral pulse (optional per App): 760µs
Maximale Working Frequency: 50–400Hz
Output toothing: 25T Ø5.9mm (Nexspor, Futaba, Align, BK, Savöx usw.)
