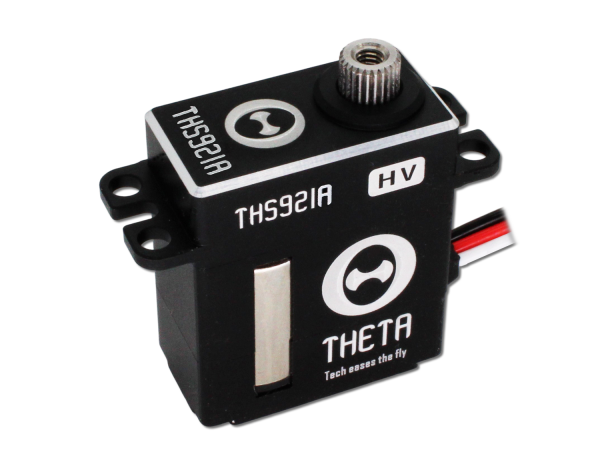

THETA THS921A HV Digital Servo - Micro / 23mm swashplate - 250-470 size

THETA THS921A HV Digital Servo

The application range of the servo is versatile from helicopter swashplate servo 250 size to 380 size, in function models, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC cars.

THETA THS921A HV Digital Servo

Specifications
---------------------------------------
Motor: Coreless
Operating Voltage: 6V bis 8.4V

Speed at 6V: 0.12 sec/60°
Speed at 7.4V: 0.10 sec/60°
Speed at 8.4V: 0.09 sec/60°

Torque at 6V: 6.6 kg/cm
Torque at 7.4V: 7.8 kg/cm
Torque at 8.4V: 8.6 kg/cm

Weight: 21g
Dimensions (mm): 23 × 12 × 27.4mm
Neutral pulse (factory-made): 1520µs
Working Frequency: 50–400Hz
Output toothing: 25T Ø5mm (Nexspor usw.)

Accessories:
1x Servo THS921A
4x Servo horn
1x Screw M3
4x Tapping screw for servo
