ToolkitRC M6D Dual Output AC/DC Charger – 1–6S LiPo/LiHV/LiFe

Compact, lightweight, and powerful, the M6D offers up to 500 W of charging power in a portable format. Dual-channel capability, precise balancing, and universal battery support make it the perfect companion for RC pilots seeking performance and convenience.

⚡️ M6D – Technical Specifications

🧩 General

• Product Size: 98 × 68 × 35 mm

• Product Weight: 220 g

• Box Size: 108 × 80 × 46 mm

• Box Weight: 300 g

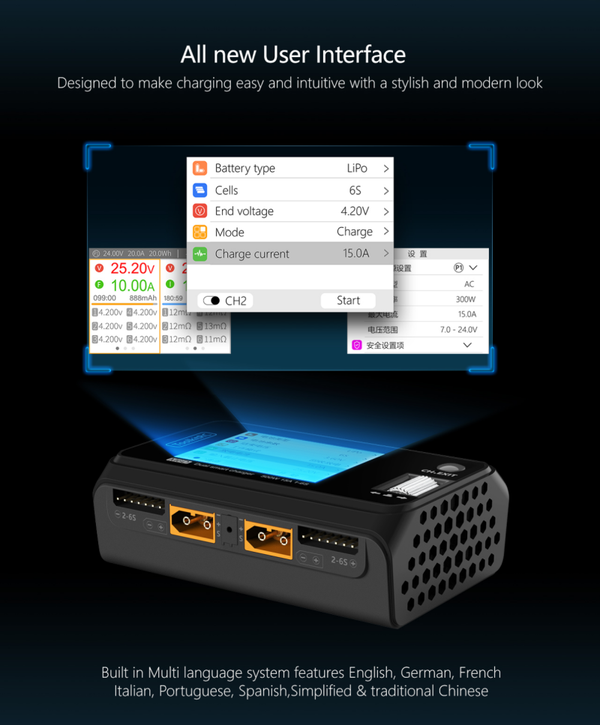

• Display: IPS 2.4″ LCD – 320 × 240 px

🔌 Power & Input

• Input Voltage: 7.0 – 28.0 V @ max 30 A

🔋 Battery Compatibility

• LiPo / LiHV / LiFe / Li-ion: 1 – 6 S

• NiMH: 1 – 16 S

• Pb (Lead-acid): 1 – 10 S

⚖️ Balancing

• Balance Current: 800 mA (2 – 6 S)

• Balance Accuracy: < 0.005 V

⚡️ Charging & Discharging

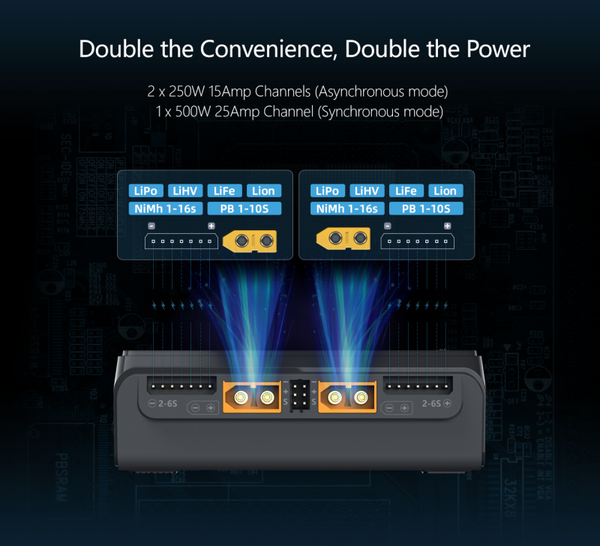

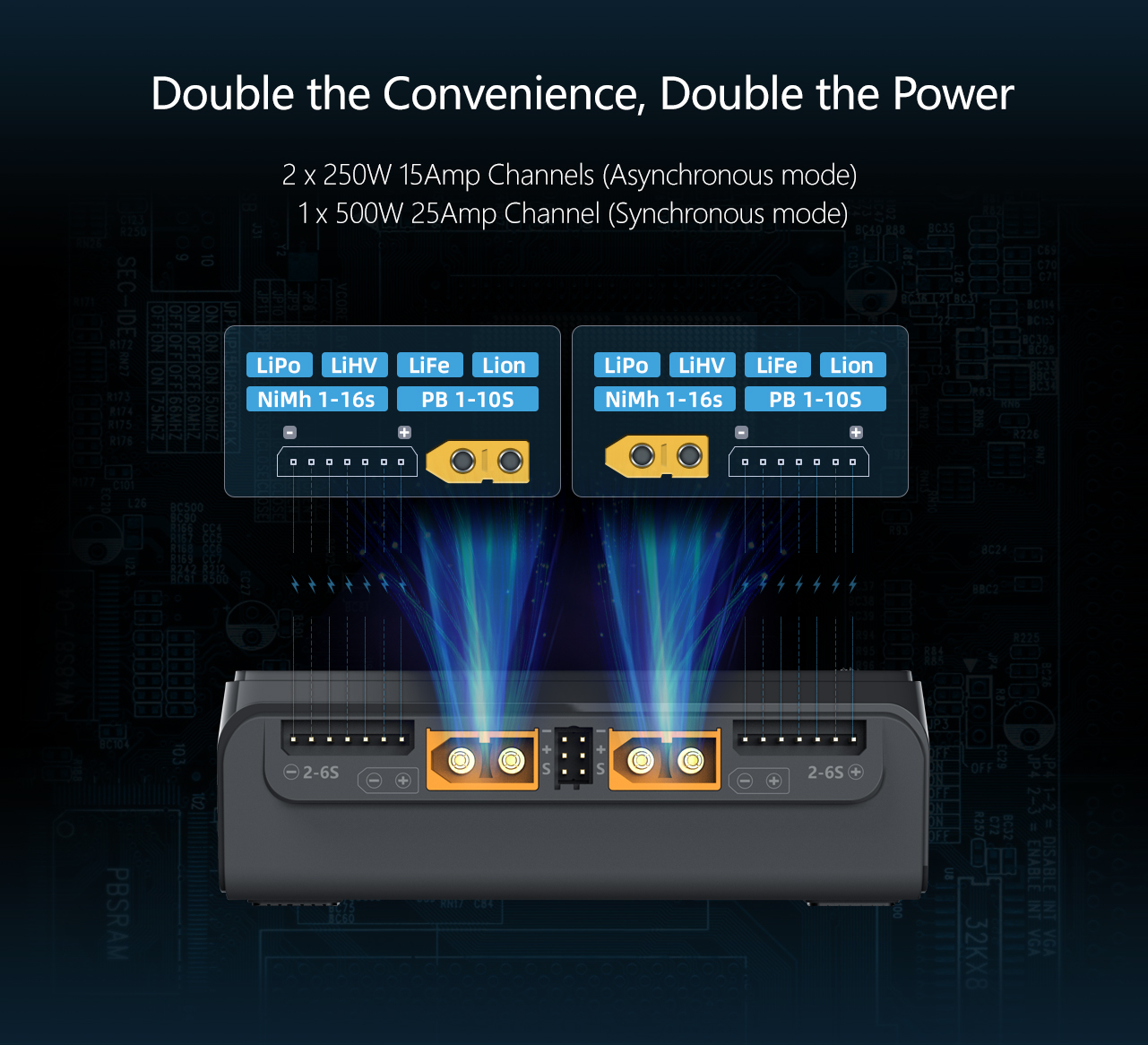

• Charge Power:

  • 500 W @ max 25 A (SYNC mode)

  • 250 W @ max 15 A × 2 (ASYNC mode)

• Discharge Power:

  • 500 W @ max 15 A (Recycle mode)

  • 12 W @ max 3 A (Normal mode)

⚙️ Additional Specifications

• Voltage Range: 0.2 – 5.0 V (1 – 6 S)

• Internal Resistance: 1 – 100 mΩ (1 – 6 S)

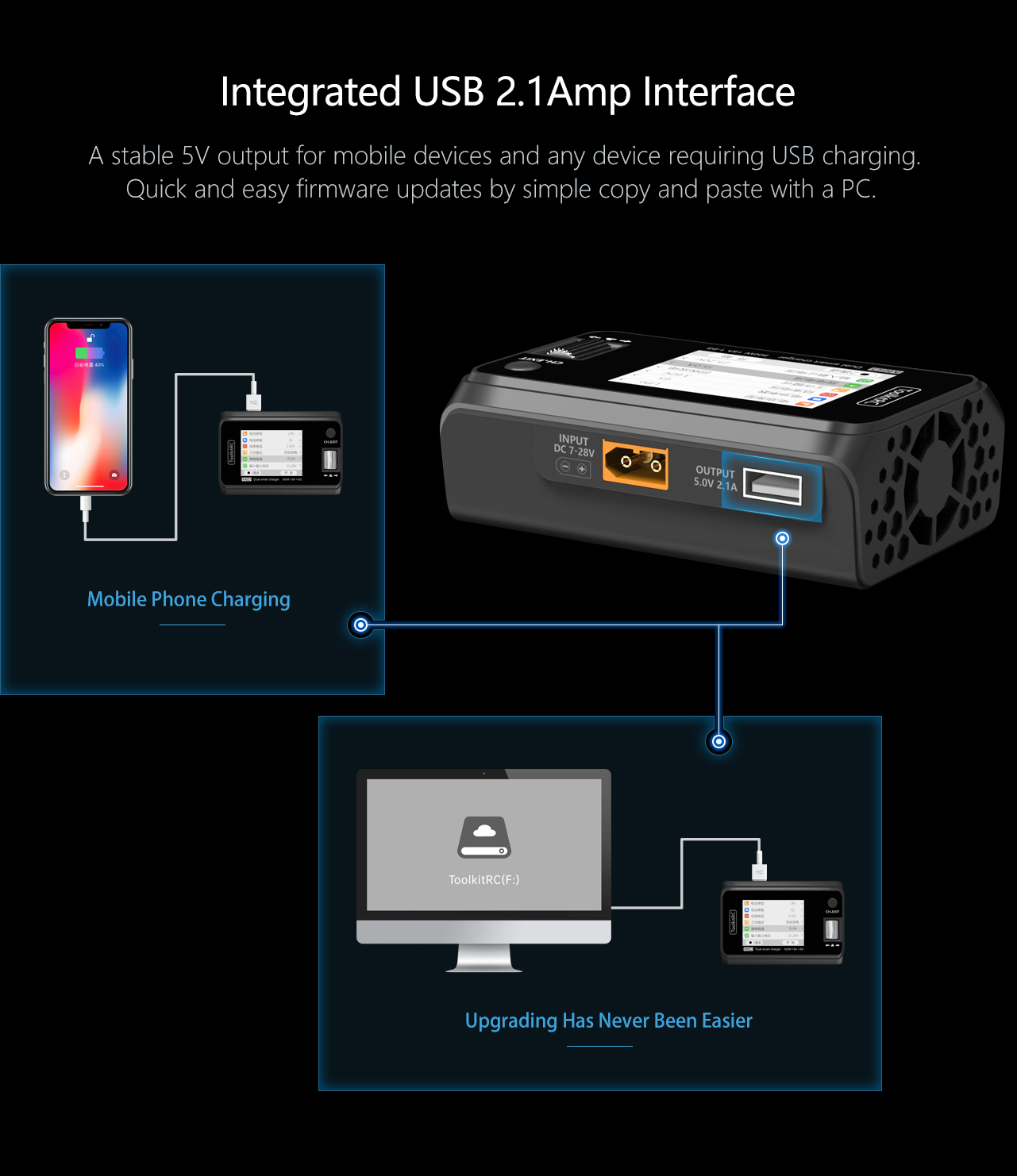

• USB Output: 2.1 A @ 5.0 V

• Firmware Upgrade: via USB 3.0 port

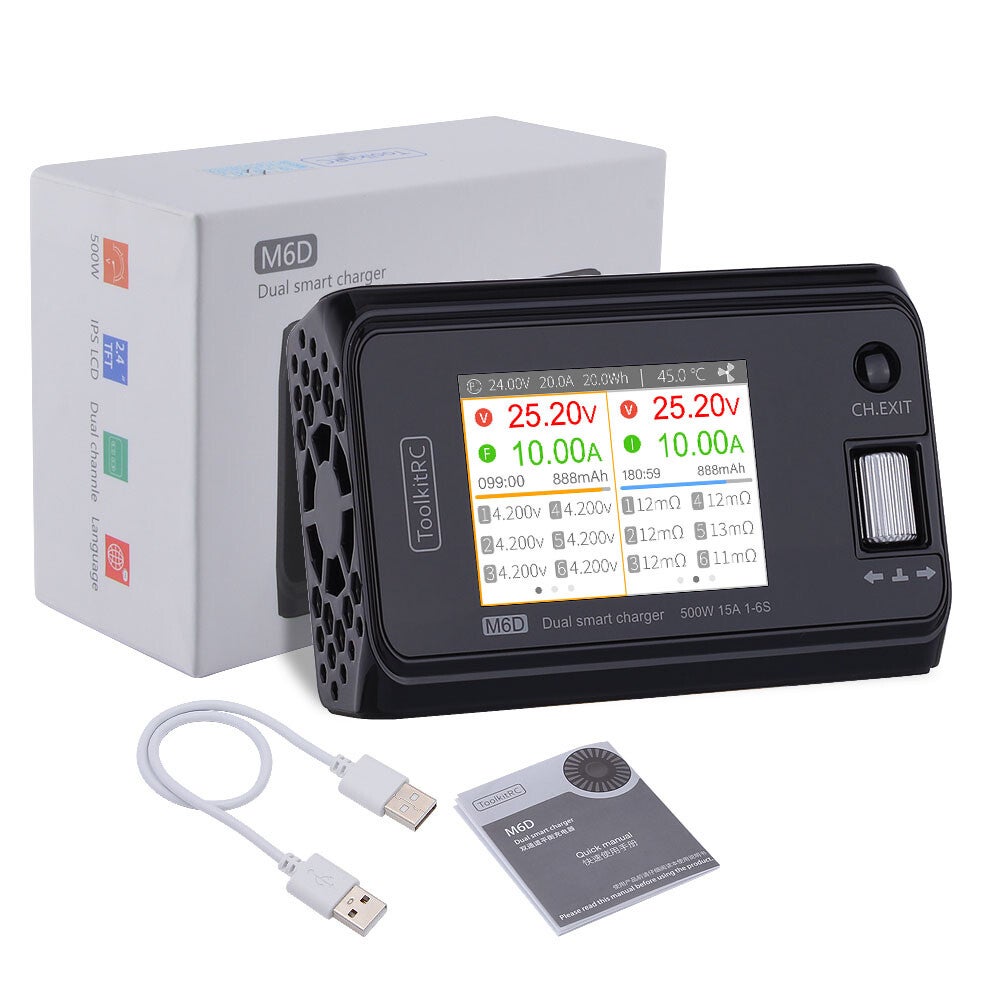

📦 In the Box

• M6D Charger × 1

• USB-C Cable × 1

• Quick Manual × 1
