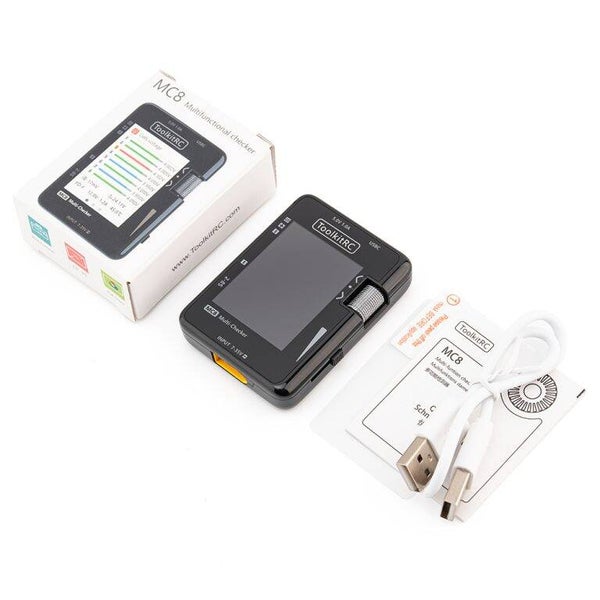

ToolkitRC MC8 Battery Multi-Checker

Soon
ToolkitRC MC8 Battery Multi-Checker
€39.90
Item number: TK31600

Compact, accurate, and versatile, the MC8 Multi-Checker is the perfect tool for RC pilots.
It allows you to analyze, balance, and measure your batteries and signals with precision — all in one ultra-portable device featuring a bright IPS display and smart USB-C output.

⚡️ MC8 – Battery Multi-Checker

🧩 General

  • Product Size: 68 × 50 × 15 mm

  • Product Weight: 50 g

  • Box Size: 76 × 60 × 30 mm

  • Box Weight: 100 g

  • Display: IPS 2.0″ LCD – 240 × 240 px

🔌 Checker

  • Main Input Port (XT60): 7.0 – 35.0 V @ max 25 A

  • Balance Input: 0.5 – 5.0 V (LiXX 2 – 8 S)

  • Signal Port Input: < 6.0 V

  • Balance Current: max 60 mA (2 – 8 S)

  • Balance Accuracy: < 0.005 V @ 4.2 V

  • USB-A Output: 5.0 V @ 1.0 A (firmware upgrade)

  • USB-C Output: 5.0 – 12.0 V @ max 20 W

  • USB-C Protocols: PD3.0 / QC3.0 / AFC / SCP / FCP

📏 Measurer

  • PWM: 500 – 2500 μs @ 20 – 400 Hz

  • PPM: 880 – 2200 μs × 8 CH @ 20 – 50 Hz

  • SBUS: 880 – 2200 μs × 16 CH @ 20 – 100 Hz

⚙️ Output

  • PWM: 1000 – 2000 μs @ 20 – 1000 Hz

  • PPM: 880 – 2200 μs × 8 CH @ 50 Hz

  • SBUS: 880 – 2200 μs × 16 CH @ 74 Hz

📦 In the Box

  • MC8 Battery Multi-Checker × 1

  • USB Cable × 1

  • Quick Manual × 1

  • Screen Protector × 1
