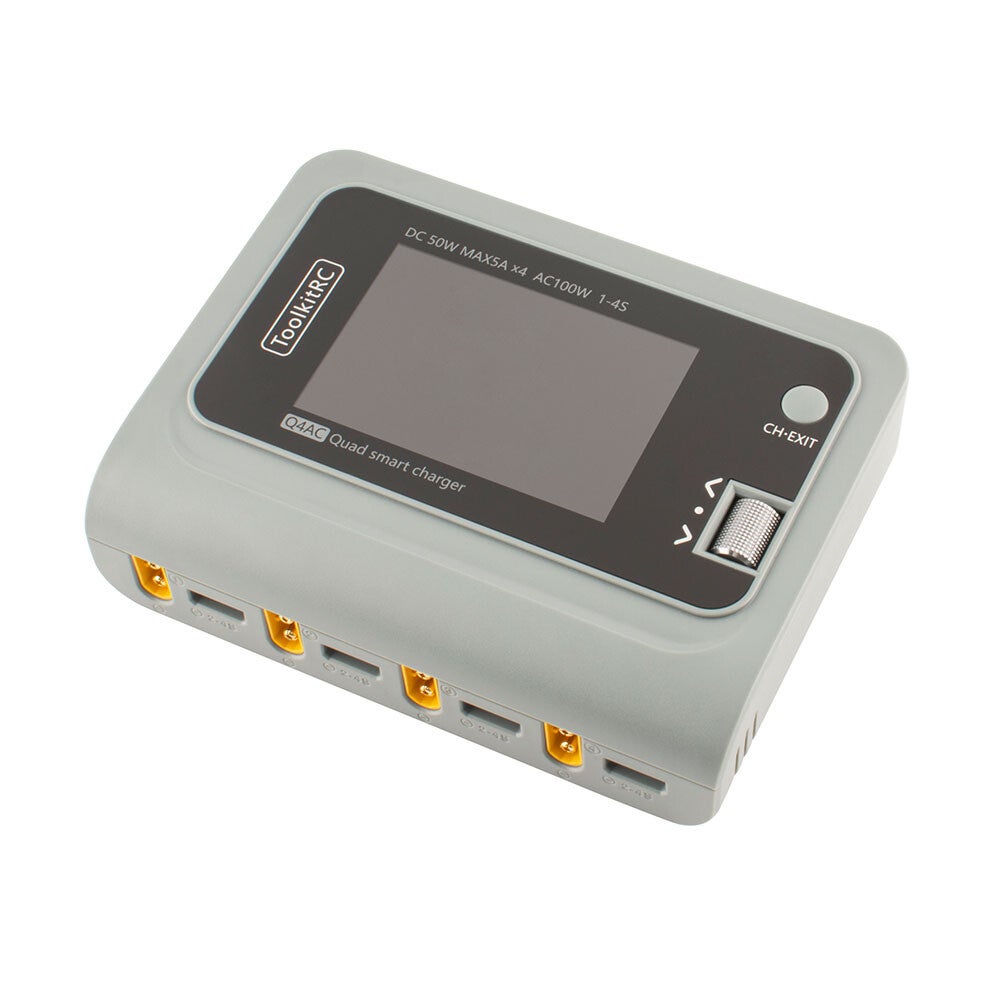

ToolkitRC Q4AC Quad Channel Charger – 200W DC / 100W AC – 1-4S LiPo

Compact yet powerful, the Q4AC Smart Quad Charger allows you to charge up to four batteries simultaneously with precision and safety.
Its 3.5″ IPS color display and dual AC/DC input make it the ideal all-in-one solution for RC hobbyists looking for convenience and performance in a single unit.

⚡️ Q4AC – Smart Quad Charger

🧩 General

• Product Size: 150 × 112 × 36.5 mm

• Product Weight: 450 g

• Box Size: 160 × 160 × 46 mm

• Box Weight: 600 g

• Display: IPS 3.5″ LCD – 480 × 320 px

🔌 Power & Input

• AC Input Voltage: 100 – 240 V @ max 1.5 A

• DC Input Voltage: 10 – 18 V @ max 20 A

🔋 Battery Compatibility

• LiPo / LiHV / LiFe / Li-ion: 1 – 4 S

• NiMH: 1 – 10 S

• Pb (Lead-acid): 1 – 8 S

⚖️ Balancing

• Balance Current: 240 mA (2 – 4 S)

• Balance Accuracy: < 0.005 V

⚡️ Charging & Discharging

• Charging Power:

  • 0.1 – 5.0 A @ 50 W × 4 (DC Input)

  • 0.1 – 5.0 A @ 50 W × 2 (AC Input)

  • 0.1 – 5.0 A @ 25 W × 4 (AC Input – low mode)

• Discharging Power: 0.1 – 2.0 A @ 5 W × 4

⚙️ Additional Specifications

• Voltage Range: 0.2 – 5.0 V (1 – 4 S)

• Internal Resistance Range: 1 – 100 mΩ (1 – 4 S)

• USB Port: Firmware upgrade via USB 2.0

📦 In the Box

• Q4AC Charger × 1

• AC Input Cable × 1

• USB Cable × 1

• Quick Manual × 1

• Screen Protector × 1
