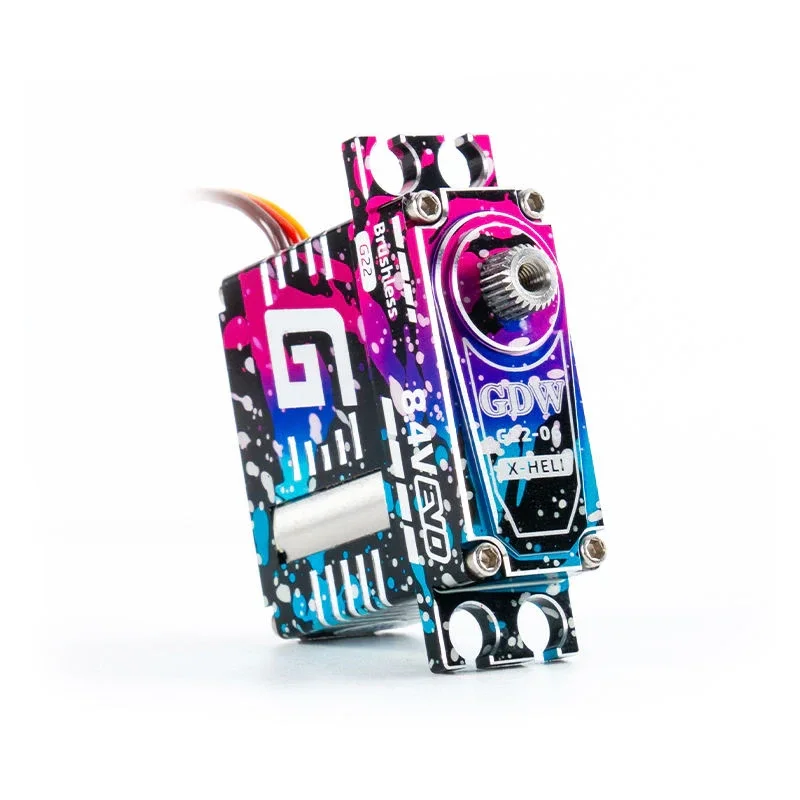

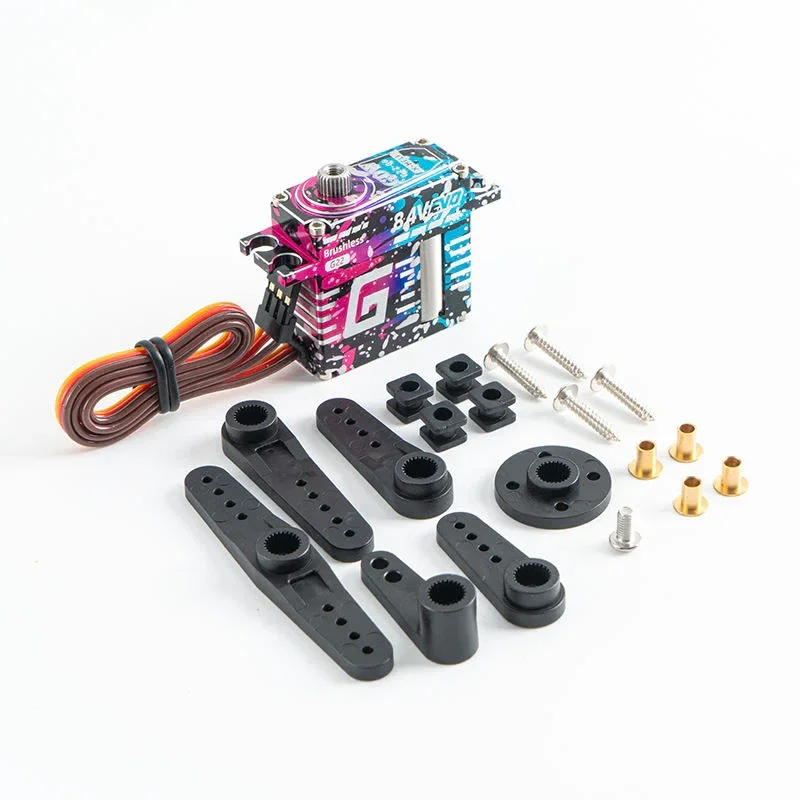

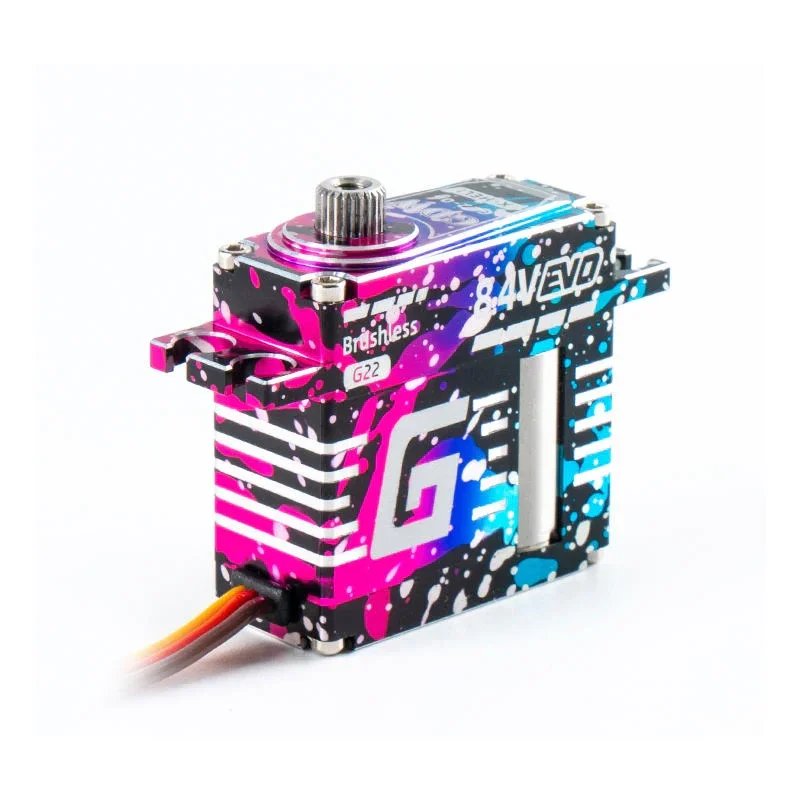

GDW G22 8.4V High Speed Metal Digital Brushless Mini Cyclic 380/700 size

GDW G22 EVO – Mini Brushless HV Cyclic Servo (8.4V)

Full Specifications :

Electrical

• Operating Voltage: 6.0V – 8.4V

• Pulse Width: 800 μs – 1500 μs – 2200 μs

• Frequency: 333 Hz

• Programmable: Yes

Performance
Operating Speed:

• 0.08 sec / 60° @ 6.0V

• 0.06 sec / 60° @ 7.4V

• 0.05 sec / 60° @ 8.4V

Stall Torque:

• 15.8 kg.cm @ 6.0V

• 19.5 kg.cm @ 7.4V

• 22.0 kg.cm @ 8.4V

Mechanical

• Gear Material: Steel

• Case Material: Full CNC Aluminum

• Motor Type: Brushless Motor

• Dead Band: 2 μSec

• Mechanical Angle: No Limit

• Operating Travel: 140° ±5°

• Bearing: 2BB

• Wire: 60-strand silicone wire / 330 mm

Dimensions & Weight

• Size: 35.5 x 15 x 34.75 mm

• Weight: 80 g ±5%

Operating Conditions

• Operating Temperature: –20°C to +60°C

• Communication Protocol: PWM

Short Description
The GDW G22 EVO is a high-performance mini HV brushless cyclic servo designed for demanding RC helicopter applications. With a full CNC aluminum case, steel gears, ultra-fast 0.05s response at 8.4V and 22 kg.cm torque, it delivers exceptional precision, speed and durability for modern 3D flying.
