THETA Kenny Ko Edition HV Servo Set 3S 12V Brushless – 3x THL787H + 1x THL782H

In stock
THETA Kenny Ko Edition HV Servo Set 3S 12V Brushless – 3x THL787H + 1x THL782H
€479.00
Item number: ts-kkes2

Short Description

High-performance THETA Kenny Ko Edition HV 3S (12V) servo set designed for RC helicopters 550 to 800+ class.
Includes 3x THL787H cyclic servos and 1x THL782H tail servo, delivering extreme speed, precision, and HV performance.

Full Description

The THETA Kenny Ko Edition HV Servo Set is a premium solution for demanding RC helicopter pilots who want maximum performance, precision, and reliability.

Developed in collaboration with world-class pilot Kenny Ko, this set is optimized for modern high-performance helicopters and aggressive 3D flying.

This combo includes:

  • 3x THL787H cyclic servos

  • 1x THL782H tail servo

Designed for HV 3S operation (up to 12.6V), these servos offer:

  • Ultra-fast response

  • Outstanding centering accuracy

  • High torque output

  • Brushless motor technology

  • Futaba-style spline compatibility

Perfect for pilots looking for top-tier performance in competition or extreme 3D flying.

Key Features

  • Kenny Ko Edition

  • HV 3S compatible (up to 12.6V)

  • Brushless motors

  • Ultra-fast speed

  • Exceptional centering precision

  • High torque output

  • Futaba-compatible output spline (25T)

  • Suitable for 550–800+ size helicopters

Technical Specifications

THL787H Cyclic Servos (x3)

  • Motor Type: Brushless

  • Operating Voltage: 7.5V – 12.6V

Speed:

  • 0.09 sec/60° @ 7.5V

  • 0.08 sec/60° @ 9.0V

  • 0.07 sec/60° @ 11.1V

  • 0.06 sec/60° @ 12.6V

Torque:

  • 24 kg/cm @ 7.5V

  • 28 kg/cm @ 9.0V

  • 33 kg/cm @ 11.1V

  • 38 kg/cm @ 12.6V

  • Weight: 75 g

  • Dimensions: 40 × 20 × 38 mm

  • Neutral Pulse: 1520 µs

  • Working Frequency: 50–400 Hz

  • Output Shaft: 25T (Ø 5.9 mm)

THL782H Tail Servo (x1)

  • Motor Type: Brushless

  • Operating Voltage: 7.5V – 12.6V

Speed:

  • 0.065 sec/60° @ 7.5V

  • 0.057 sec/60° @ 9.0V

  • 0.050 sec/60° @ 11.1V

  • 0.045 sec/60° @ 12.6V

Torque:

  • 12 kg/cm @ 7.5V

  • 14 kg/cm @ 9.0V

  • 17 kg/cm @ 11.1V

  • 19 kg/cm @ 12.6V

  • Weight: 75 g

  • Dimensions: 40 × 20 × 38 mm

  • Neutral Pulse: 760 µs

  • Working Frequency: 50–1000 Hz

  • Output Shaft: 25T (Ø 5.9 mm)

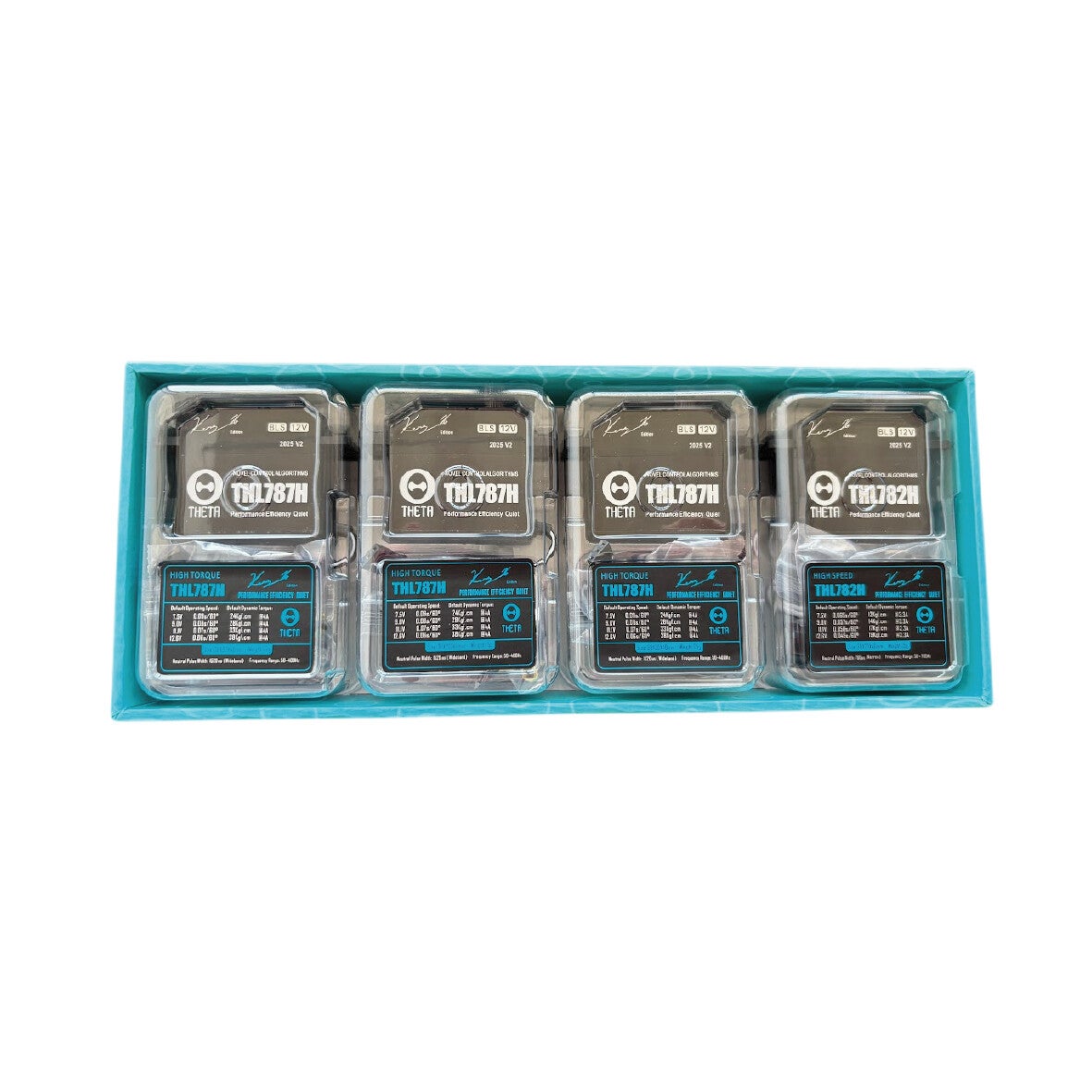

Box Content

  • 3x THETA THL787H (Cyclic)

  • 1x THETA THL782H (Tail)

Application

Recommended for RC helicopters from 550 to 800+ size, including high-performance and competition setups.
