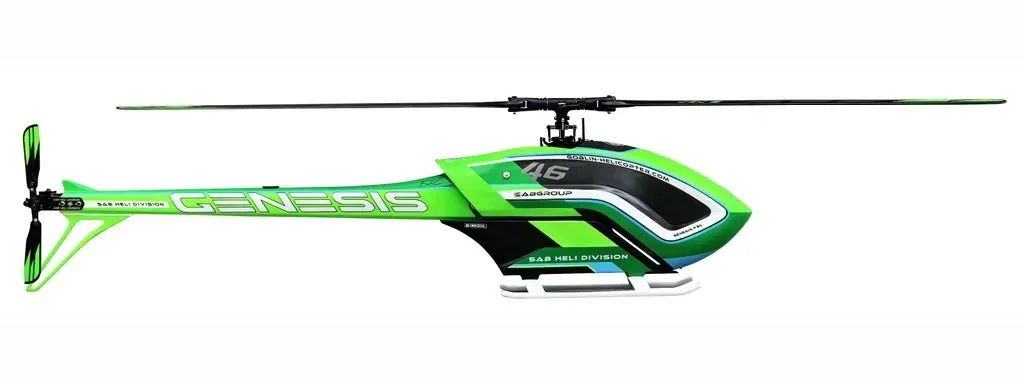

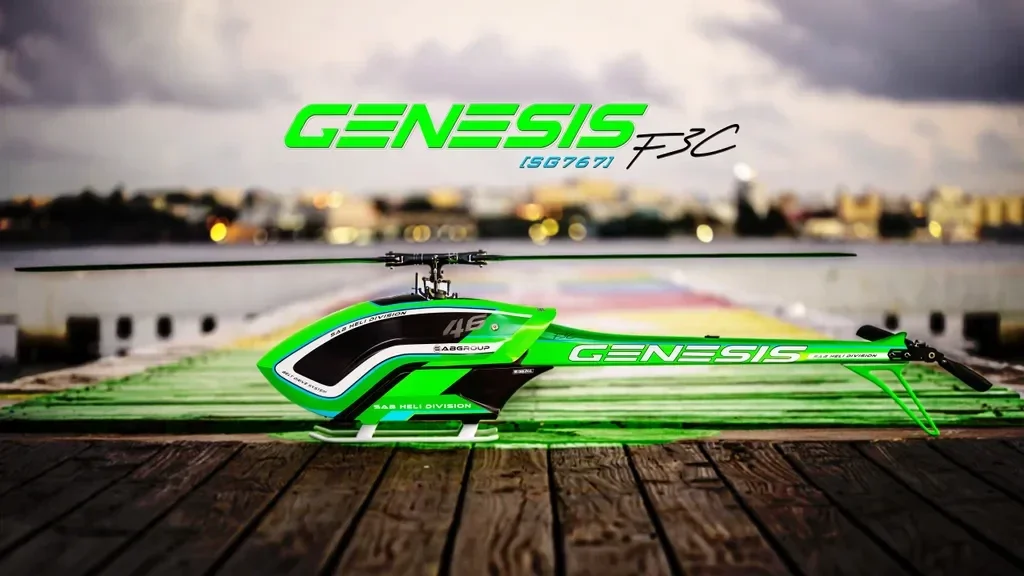

SAB Genesis F3C – SG767
Precision. Silence. Absolute Control.
🧠 Product Overview
The SAB Heli Division Genesis F3C SG767 is a no-compromise helicopter designed specifically for F3C competition flying, where precision, smoothness, and consistency are everything.
Unlike typical 3D helicopters, the SG767 is engineered to deliver an ultra-stable, perfectly linear flight behavior, allowing pilots to execute the most demanding maneuvers with unmatched accuracy.
Every component has been optimized to reduce vibration, noise, and mechanical losses — resulting in a helicopter that feels locked-in, predictable, and incredibly refined in the air.
✨ Key Features
- 🎯 Pure F3C design philosophy – built for precision flying

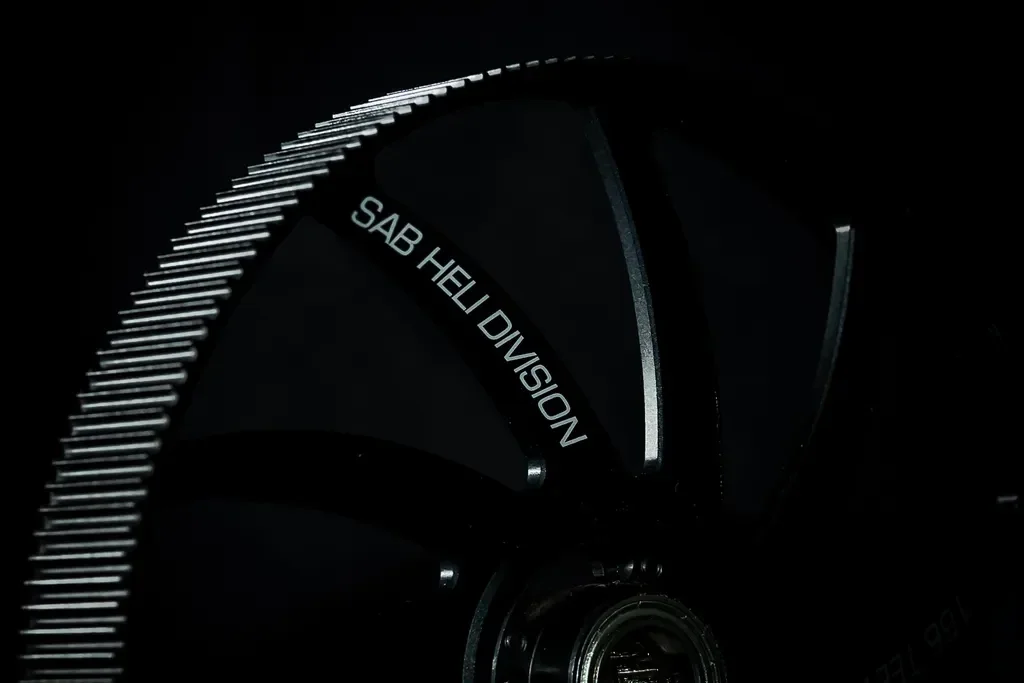

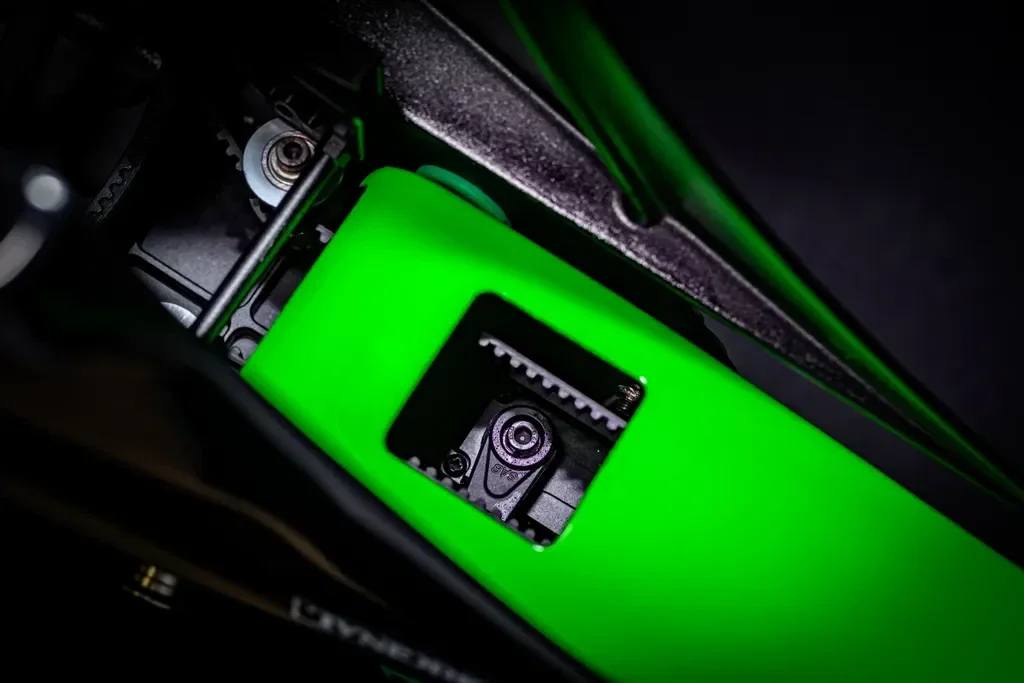

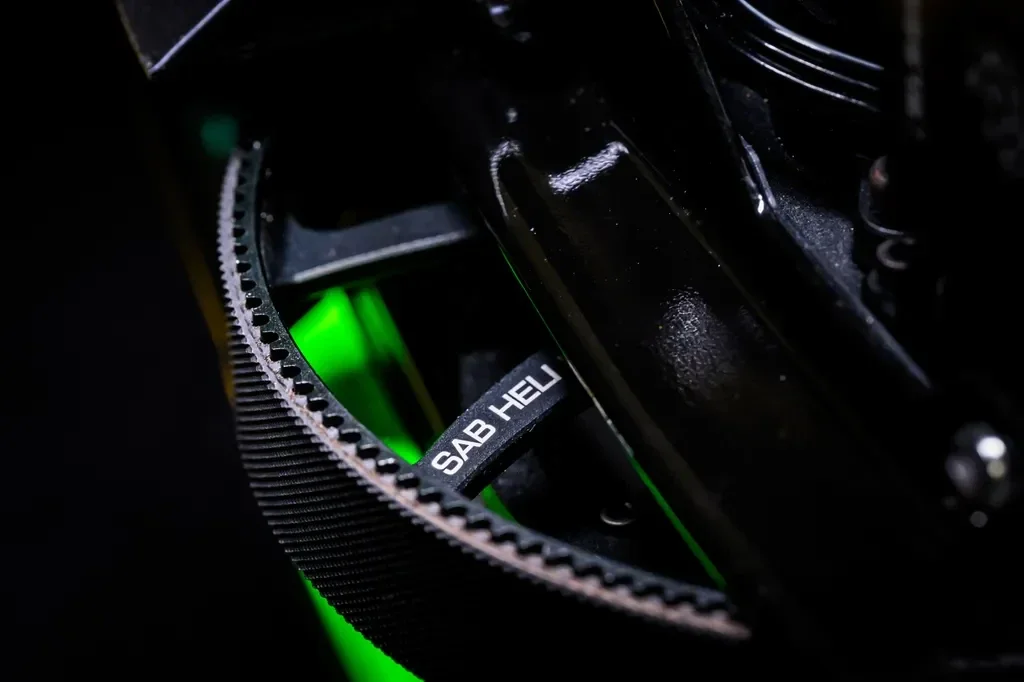

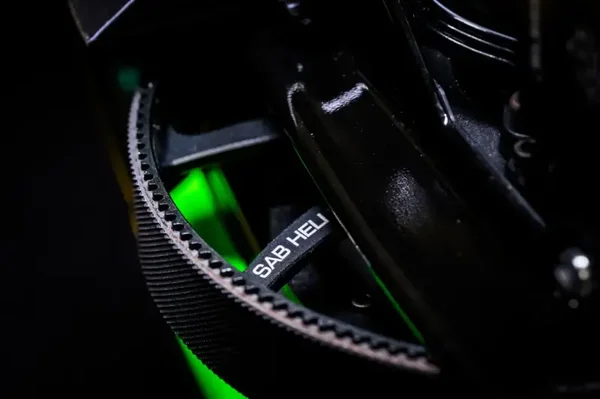

- 🔇 Ultra-quiet drivetrain with Gates GT3 belt system

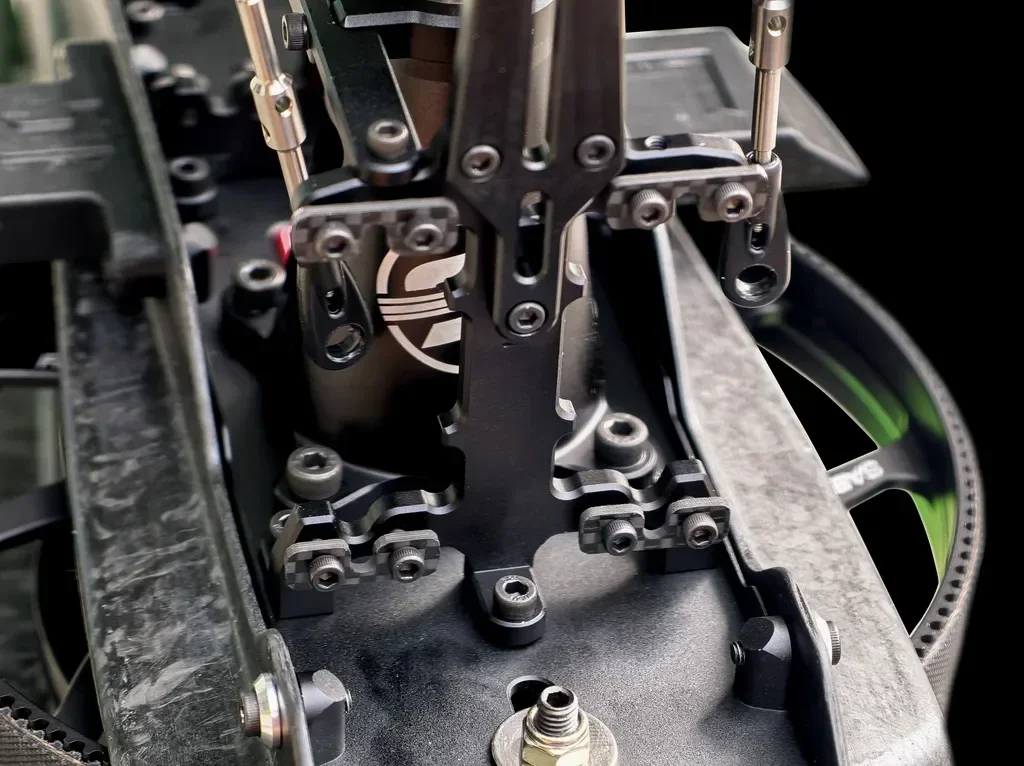

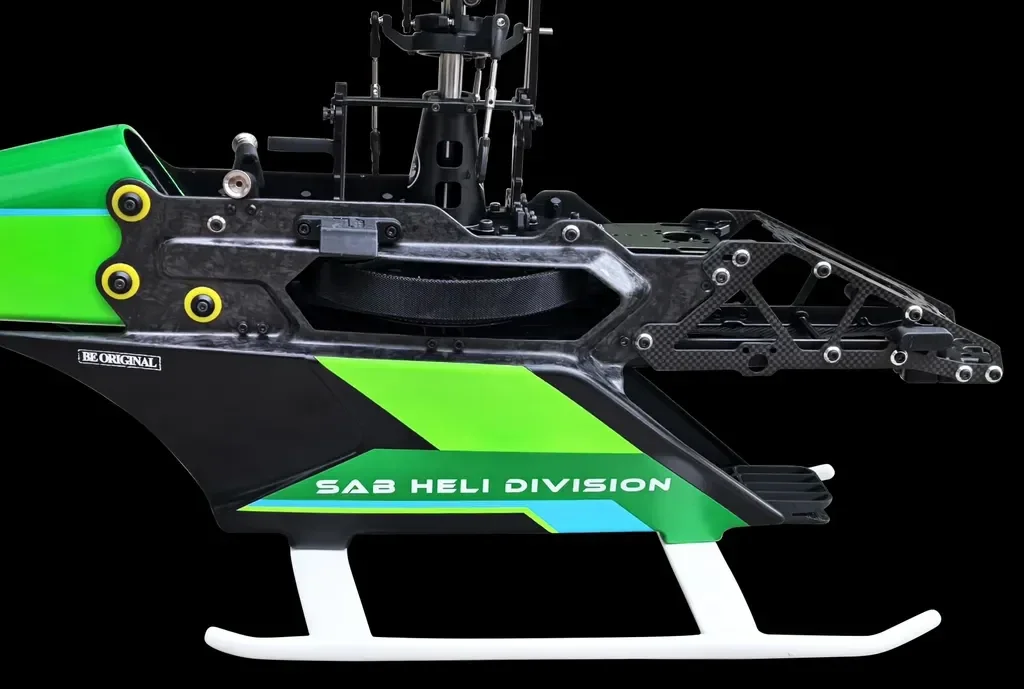

- 🧱 Forged carbon fiber frame – extreme rigidity with reduced weight

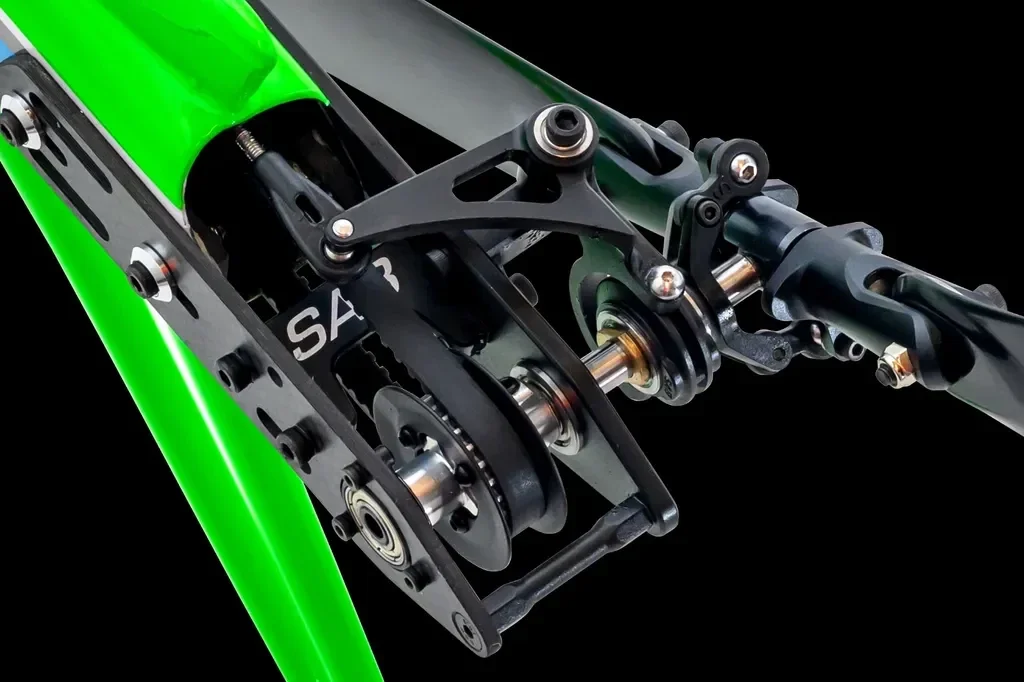

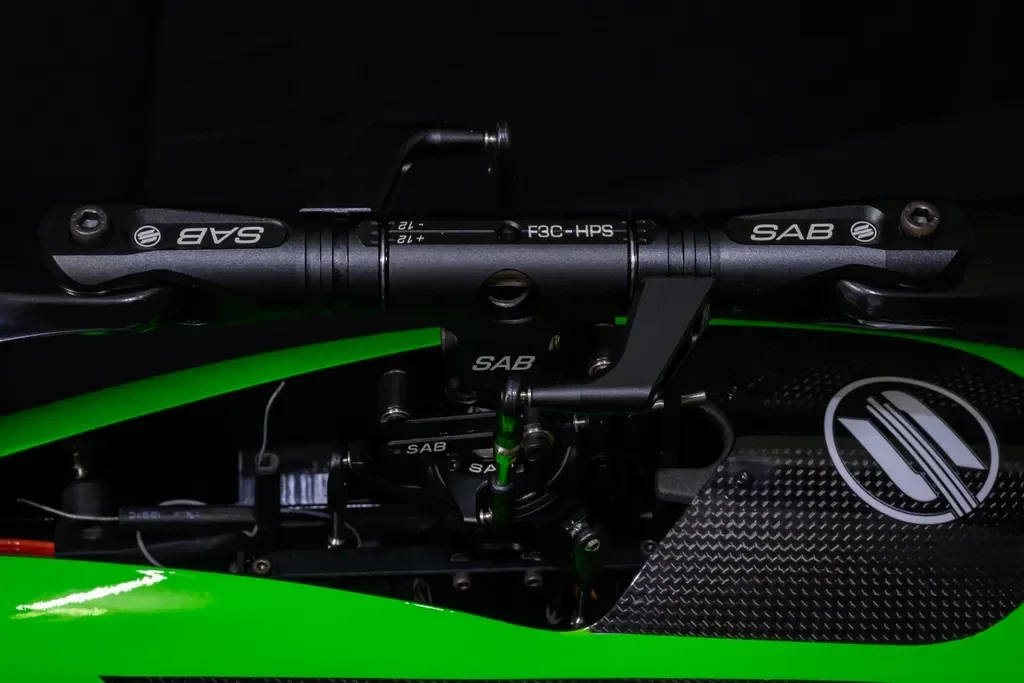

- ⚙️ Optimized rotor geometry for smooth and linear control response

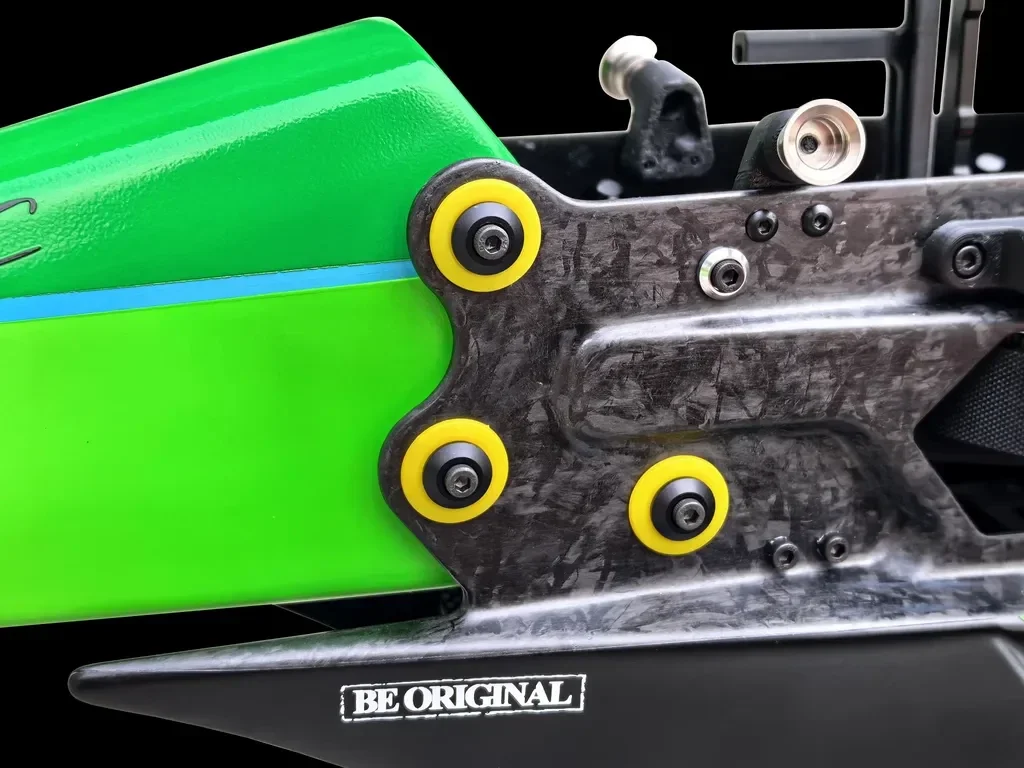

- 🌀 Advanced damping system for vibration-free operation
- 🔩 Simplified mechanics for reliability and easy maintenance

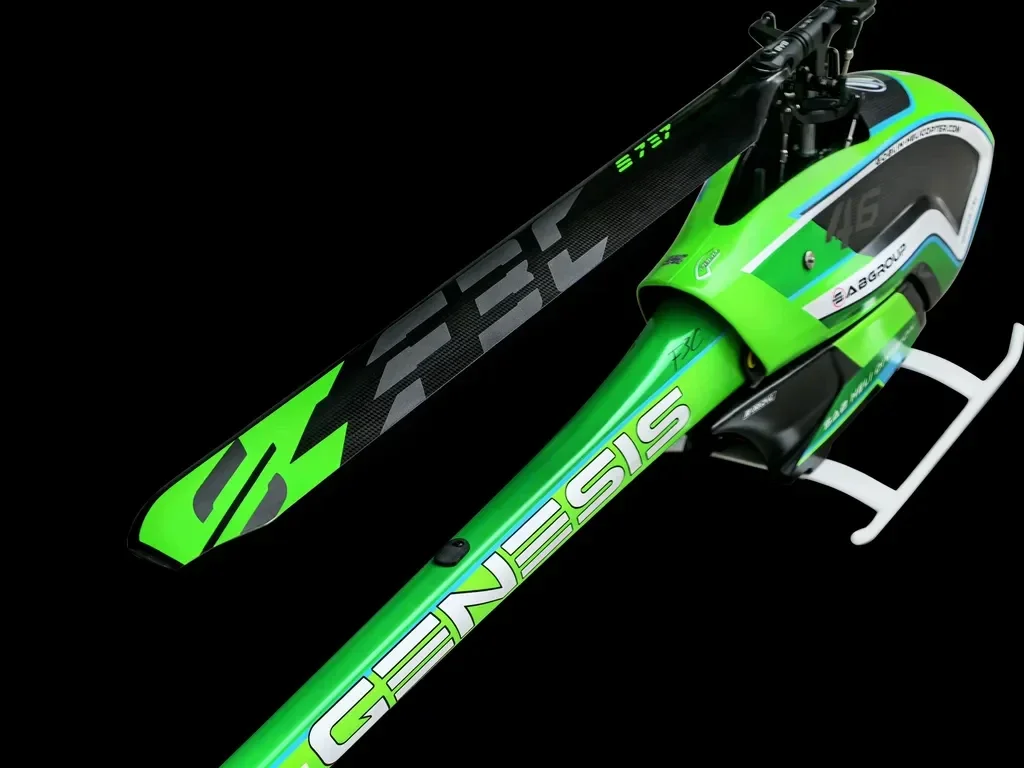

- 🎨 Exclusive competition-style canopy and design

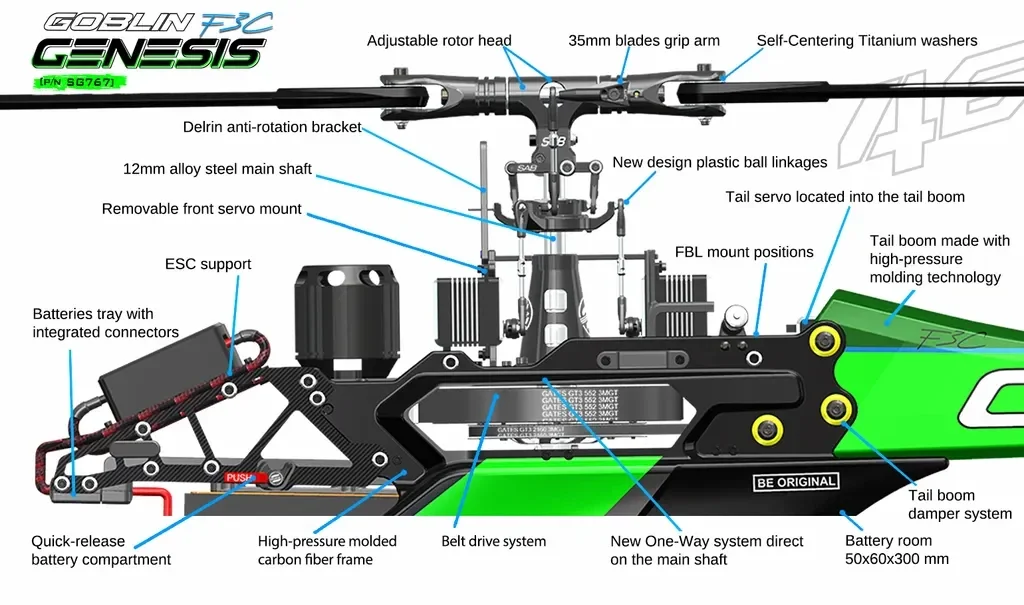

⚙️ Technical Specifications
- Main blade length: 690 – 750 mm
- Main rotor diameter: up to ~1576 mm
- Tail rotor diameter: ~292 mm
- Weight (without electronics): ~3.6 – 4.0 kg
- Battery: 12S LiPo
- Recommended motor: 340 – 420 KV
- Gear ratio: 6.1 – 8.4:1
- Battery tray size: 50 × 60 × 300 mm
📦 Kit Includes
- Complete helicopter kit

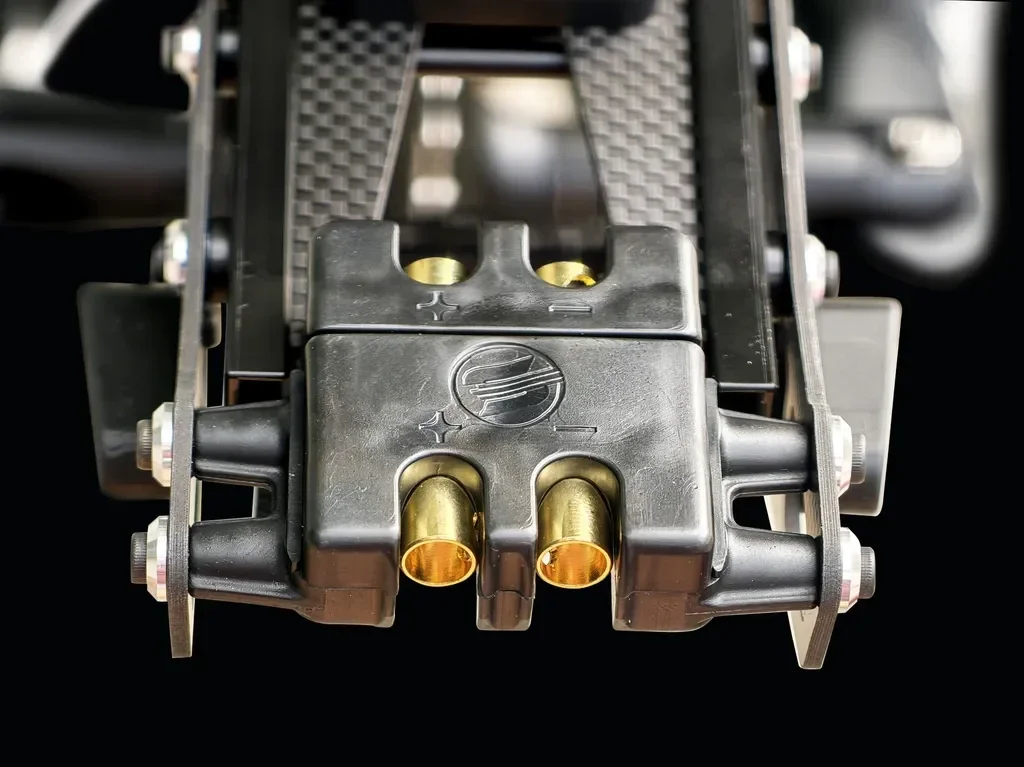

- 2 battery trays with integrated connectors
- 21T motor pulley
- F3C main blades (737 mm)
- Tail blades
👉 Electronics (motor, ESC, servos, FBL system) not included
⚡ Recommended Setup (Hubtech-RC Approved)
- 🔋 Battery: 12S 5000–6500 mAh
- ⚡ ESC: HV 180–260A
- 🔄 Servos: High-end HV precision servos (12V ready)
- 🧠 FBL system: VBar EVO / Brain2 / Nexus / Spirit
💡 For maximum performance, we recommend pairing this model with high-quality LiPo packs like Vortex for optimal voltage stability and consistency.
🧬 Flight Characteristics
The SG767 delivers a completely different experience compared to 3D helicopters:
- 🟢 Extremely stable hover and tracking
- 🟢 Perfectly linear control feel
- 🟢 Outstanding low headspeed performance
- 🟢 Minimal vibration → cleaner gyro performance
- 🟢 Ultra smooth transitions between maneuvers
This makes it the perfect platform for F3C schedules, precision flying, and advanced pilot training.
🏆 Why Choose the SG767?
✔️ Designed specifically for F3C competition
✔️ Exceptional precision and repeatability
✔️ Ultra quiet and refined mechanics
✔️ Built with premium SAB engineering quality
✔️ Ideal for pilots who demand absolute control
⚠️ Important Notes
- This is a high-end competition kit – advanced building and setup skills required
- Electronics must be selected carefully to match F3C requirements
- Not intended for aggressive 3D flying
🏁 Conclusion
The SAB Genesis F3C SG767 is not just another helicopter — it is a precision instrument designed for pilots who want to push their flying to the highest level.
If your goal is perfect lines, absolute smoothness, and competition-level performance, this is one of the best platforms available on the market today.
