IL Goblin 590 Orange

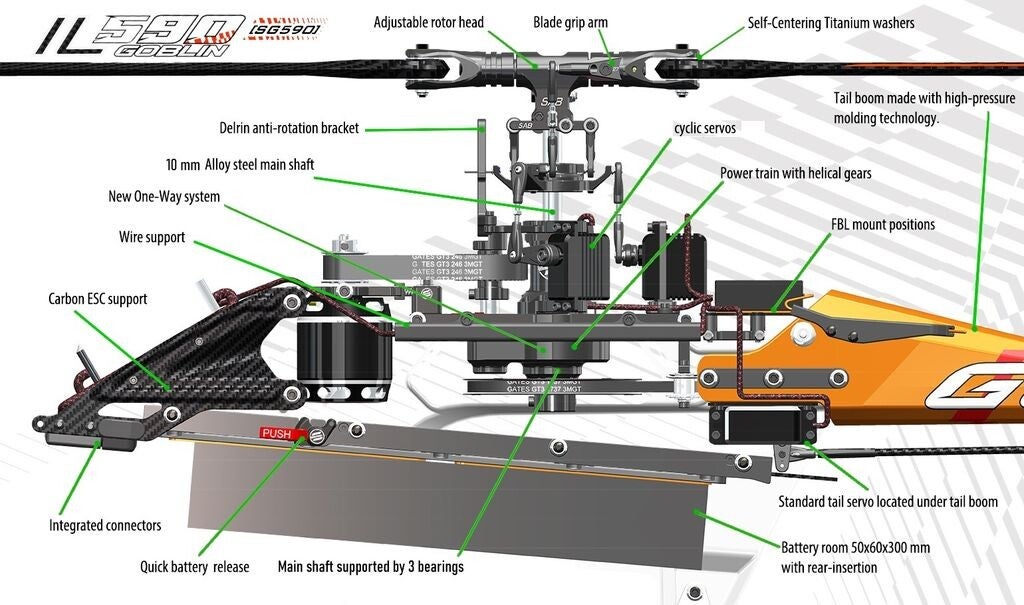

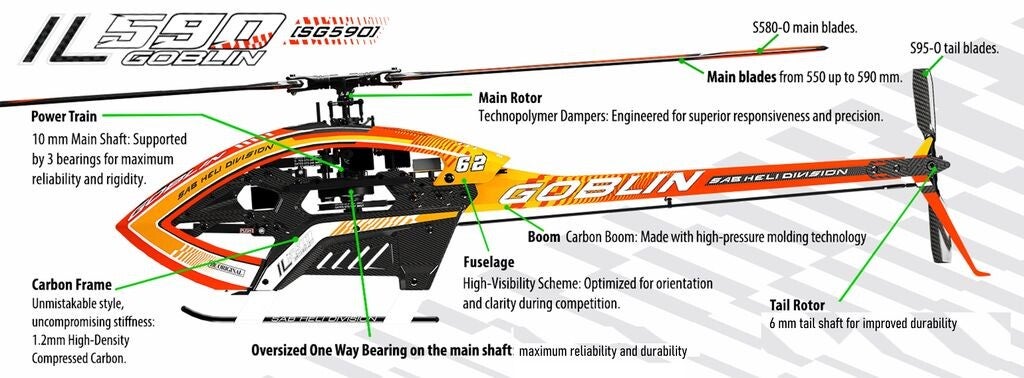

590 | THE UNIQUE EVOLUTION OF GOBLIN CONTINUES

• Airframe Weight: 1820 g (Goblin with main blades/tail blades - no motor/no electronic/no battery)

• Tail Boom: High-Rigidity Compressed Carbon

• Frame: 1.2mm High-Density Compressed Carbon

• Transmission: Overbuilt "Eternal" Gearbox with oversized OWB direct on the main shaft

• Shafts: Main 10 mm | Tail 6 mm

• Battery: Rear-loading tray

Technical Specs

• Main Rotor Diameter: 1242 mm (with 580 mm blades)

• Main Blade Length: 550 – 590 mm

• Cyclic Servos: 3x Mini ( 3x Standard as option)

• Tail Servo: Standard

• 6S Setup: Motor 4025-1100 KV | Battery 5000/6000 mAh

• 12S Setup: Motor 4025-560 KV | Battery 3000/4000 mAh
